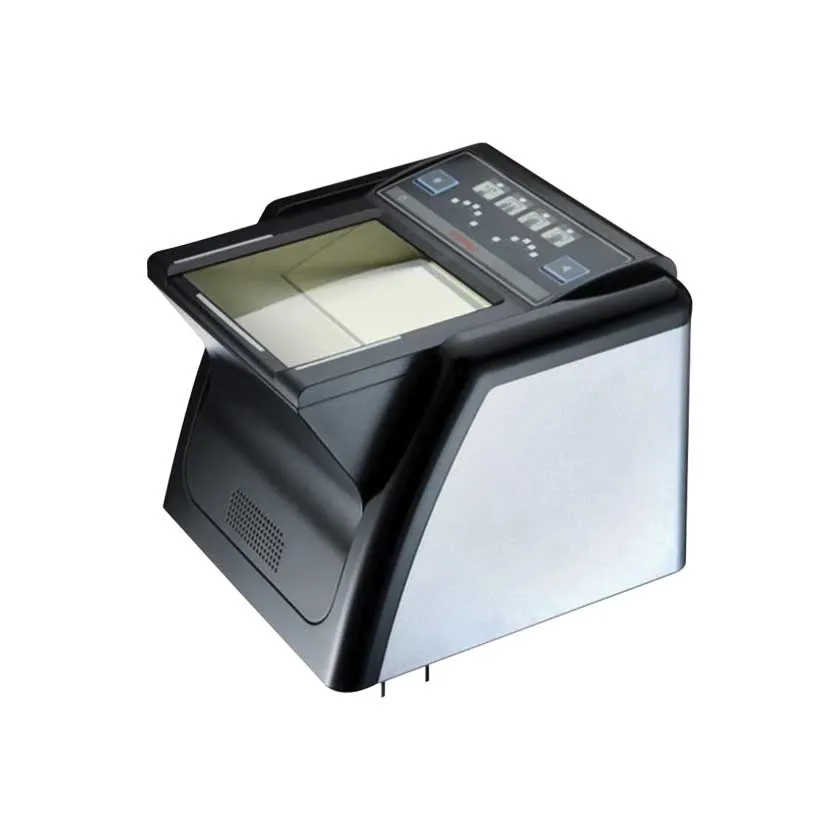

RealScan-G10 is a compact live-scanner for single and ten-print capture. Suprema’s advanced optical technology allows high-speed image capturing and seamless image processing. IP54-rated dust and water resistant housing makes it suitable for indoor and mobile environments With its proven reliability of FBI certication, RealScan-G10 is the perfect portable live-scanner for civil and criminal applications.

PLEASE NOTE, INTERNATIONAL DESTINATIONS REQUIRE AN EXPORT LICENSE FROM THE STATE DEPARTMENT. THE APPLICATION PROCESS CAN LAST UP TO 45 DAYS.

Benefits

• Compact and portable all-in-one live scanner for single finger flats, rolls and four finger slaps
• Rugged IP-54 dust and waterproof form factor
• FBI certification for civil ID and AFIS applications
• Fast and easy capture of wet and dry fingers
• Fingerprint quality, sequence, slippage checks and automatic segmentation
• Complete compliance to IDENT and DHS requirements

Features

FBI IAFIS IQS Appendix F Certification

The certification provides assurance to users that certified products meet or exceed FBI interoperability standards and will work with the Integrated Automated Fingerprint Information System (IAFIS). It ensures that the images used are high quality and support all phases of identification for fingerprint experts and the IAFIS. Appendix F has stringent image quality conditions, focusing on the human fingerprint comparison and facilitating large scale machine many-to-many matching operation.

Advanced Rolled Image Construction Technology (ARIC)

RealScan-10 features Advanced Rolled Image Construction (ARIC) technology using Suprema’s unique slip detection algorithm for constructing rolled fingerprint images. With ARIC technology, RealScan-10 performs over 20 fps frame rate in roll capturing which ensures highest image quality and lower error rate in capturing sequences.

Powerful Internal DSP

RealScan-10 is equipped with powerful 400MHz CPU which enables high-speed image processing in capturing, storing, processing and transferring. With the CPU, Suprema’s unique Image Pre-Processing technique results more frame rates in capturing and & richer pixel throughput hence produces better image quality. It also minimizes device’s initialization time to incredible 0.57 second.

Intuitive User Interface

RealScan-10’s control panel consists of two operation buttons and LED indicators. The intuitive graphic icons indicates fingerprint types that the device is scanning, and LED lights at fingertips indicate fingers to be placed. The operating buttons on both sides helps users to operate scanning directly from the scanner and built-in speaker enables fully programmable voice instructions.

Extra Wide Platen for Easier Capturing

Wide & solid, the RealScan-10’s 3.3" inch platen is the largest size in its class and ensures easier capturing when placing hands. The solid & scratch-free surfaces makes it durable for many kinds of stains & damages.

Ergonomic Design

RealScan-10 has been ergonomically designed to allow obstruction-free use for all kinds of fingerprint capturing. Ideally indented front overhang allows seamless hand moves in rolled print and two thumbs capturing.

Rugged IP54 Dust & Waterproof Structure

RealScan-10’s body structure has been comprehensively sealed against invasive moisture, dust and liquid. Featuring superb IP54 rated protection. Its meticulous sealing, combined with extra protective engineering, ensures faultless operation even under harsh conditions.
